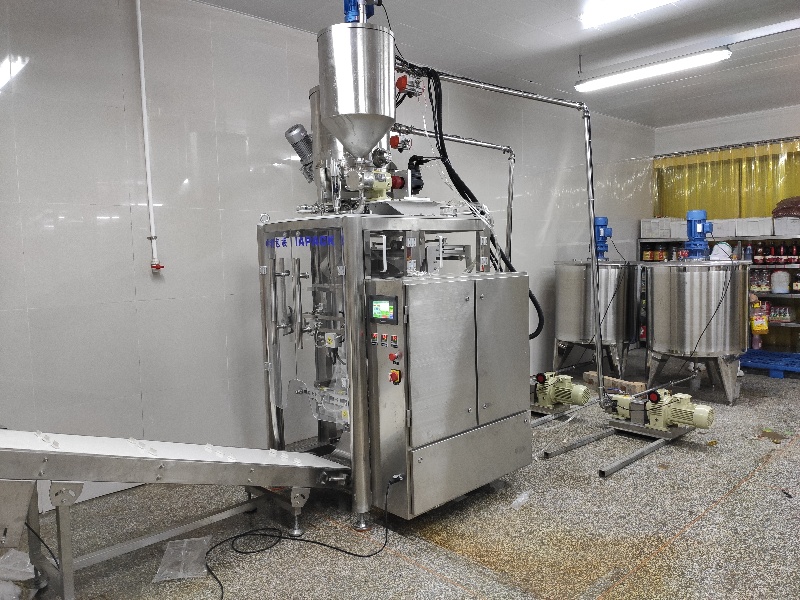

This unit machine is special design for packaging liquid& sauces product into plastic bag .The machine have the function of automatic bag forming, Liquid product measuring and filling .With optional function of exhausting the air inside the bag and then sealing the bag .The machine also have color ribbon for date printer for coding of expiry date and production date.Widely use for packaging different liquid and paste product

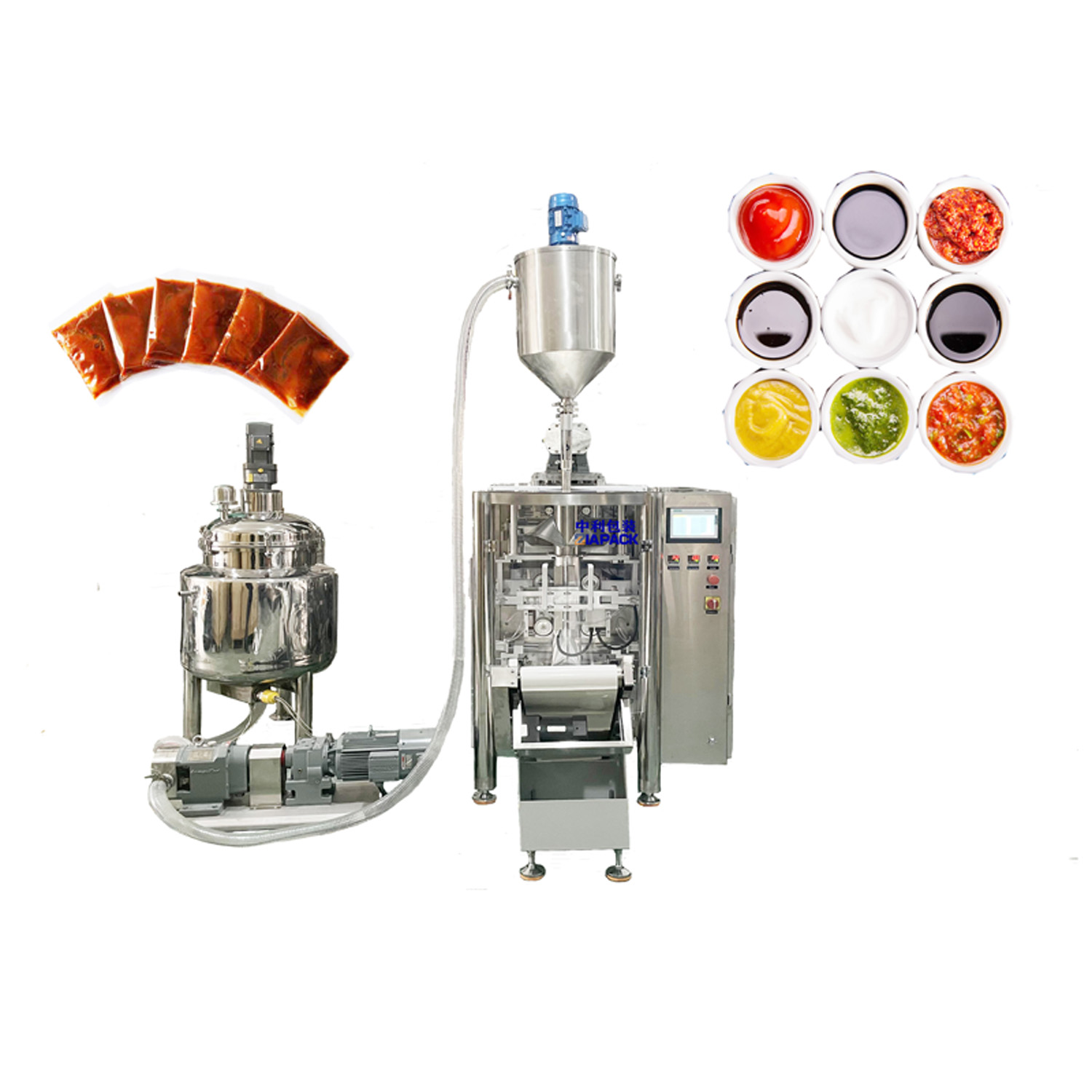

1, ZL520 vertical bag forming filling sealing Packaging machine

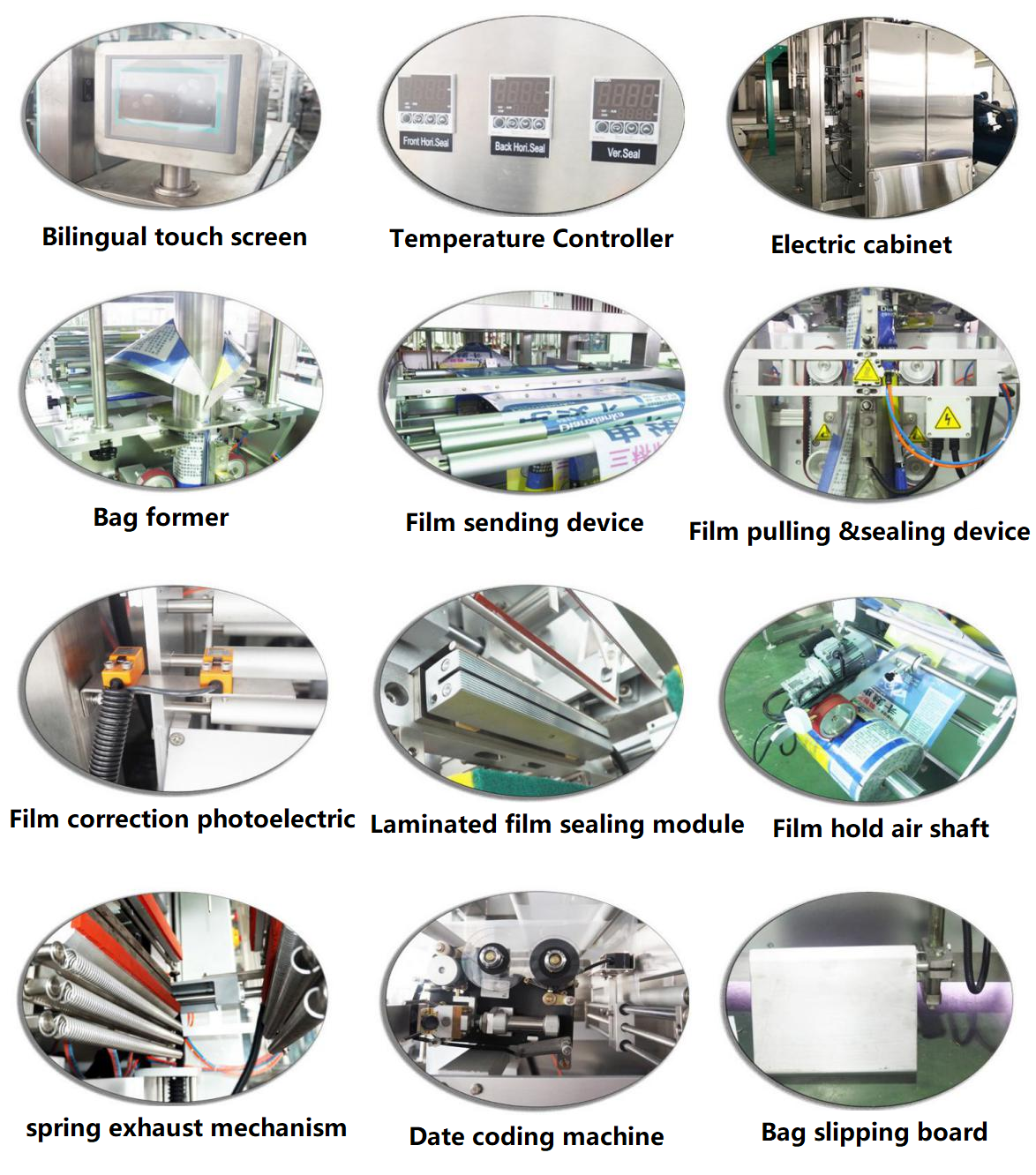

The whole machine made by Stainless Steel 304. This machine equipped with bag-making, cutting, code printing, etc. Siemens PLC and Touch Screen，Panasonic servo motor, Japanese Photo Sensor , Korean Air valve, etc. .The film pulling system adopted servo motor driving making speed faster.



Technical Parameters:

Weighing Range: 1000-2000g

Packaging Speed: 20-40 bags/min

Bag size: (80-360)*(100-250) mm (L*W)

Compressed air requirement: 0.6Mpa 0.65m³/min

Reel outer diameter: 400mm

Core inner diameter: 75mm

Machine weight: 800kg

Power source: 5.5kW 380V±10% 50Hz

Main Features and Characteristics:

A wide range of pouches:  Pillow and Gusset pouches.

High speed: 20-50 bags/min

Easy to operate: PLC controller and color touch-screen, fault indication on the touch screen.

Easy to adjust: only about 10 minutes to change different pouches.

Frequency control: speed can be adjusted by frequency conversion within the range.

High Automation: unmanned in weighing and packing process, machine alarm automatically when failure.

Safety and Hygiene:

No film, machine will alarm.

Machine alarm and stop when the inadequate air pressure.

Safety guards with safety-switches, machine alarm and stop when the safety guards are opened.

Hygienic construction, the product contact parts are adopted sus304 stainless steel.
